Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Matrix
  • Model Number: 12v 100ah inverter battery
  • Usage: Solar system, off gird system, UPS system, ,solar ,off grid
  • Voltage: 12v
  • Sealed Type: Sealed
  • Maintenance Type: Free
  • Size: 407*173*236mm
  • Weight: 31.5KG
  • Nominal Capacity: 100ah
  • Type: 12v 100ah lead acid shenzhen battery
  • Materials: lead plate, sulfuric acid, abs container
  • business type: manufacturer
  • supplying ability: 300,000 per month
  • warranty: 3 year
  • using temperature: -20℃~55℃
  • lifespan: 3~5 years
  • package: pp bag for each
  • certificate: CE/MSDS

Packaging & Delivery

Packaging Details pp bag for each, 1 pcs/ CTN
Delivery Time 20~25 days after deposit


Solar storage 12v 100ah lead acid shenzhen battery


Specification :
Nominal
12v
Rated capacity(20 hour rate)
100ah
Length407±1mm(16.02 inches)
Width173±1mm(6.81inches)
Height209±1mm(8.23inches)
Total Height236±1mm(9.29 inches)
Weight Approx31.5KG(69.3lbs)

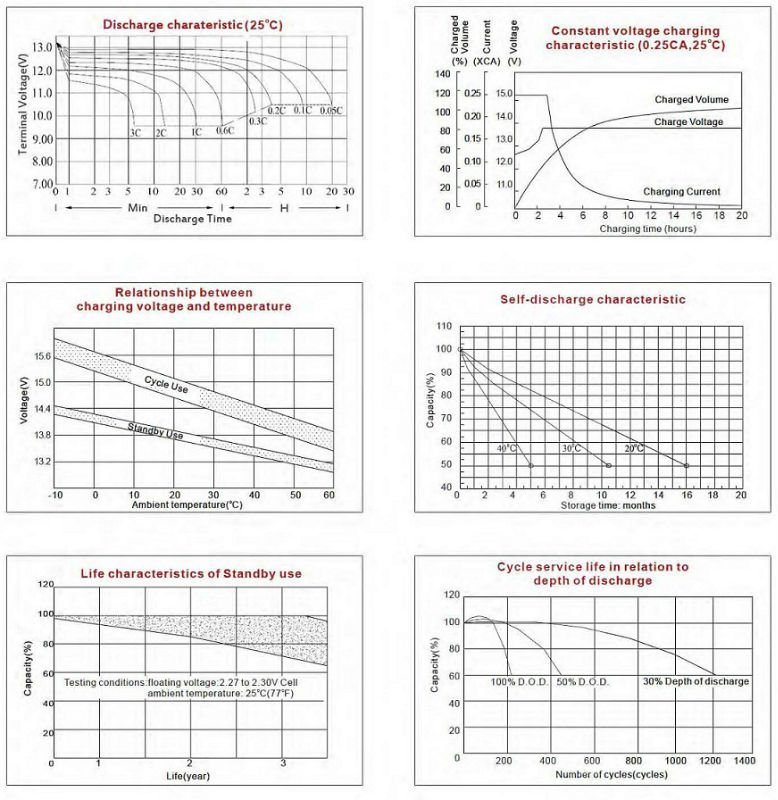

Characteristic :
Capacity 25°C10 hour rate(10.00A, 10.80V)100.00AH
5 hour rate(16.00A, 10.50V)80.00AH
1 hour rate(60.00A, 9.60V)60.00AH
Internal ResistanceFull charged Battery
at 25 °C (77°F)
4.5mΩ
Capacity affected by temperature
(20 hour rate)
40°C(104°F)102%
25°C(77°F)100%
0°C(32°F)85%
-15°C(5°F)65%
Self-Discharge
at 25°C(77°F)
Capacity after 3 month storage91%
Capacity after 6 month storage82%
Capacity after 12 month storage64%
Charge
(constant voltage)
CycleInitial Charging Currentless than 30.00A Voltage14.40-15.00 V
FloatVoltage 13.50-13.80V
TerminalT10

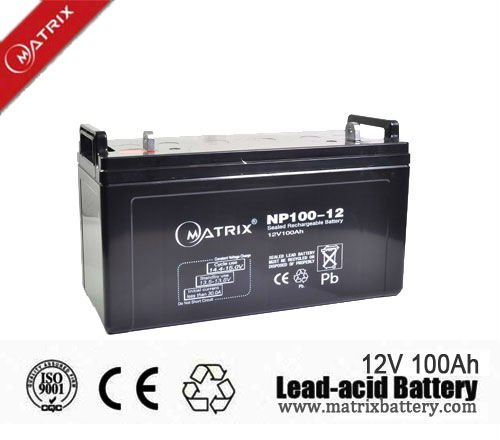

Photoes:

Product Description

General features:

1)Extremely safe and stable chemistry

2)Non-spillable construction design

3)ABS containers and covers optional

4)safty valve installation of explosion proof

5)high quality and high realiability

6)exceptional deep discharge recovery performance

7)low shelf discharge characteristics

8)flexible design for multiple installation positions



Applications:

♦Telephone switchboards, electric equipments, medical equipments, medical instruments and meters

♦Computers and uninterrupted power source (UPS)

♦ower transmission and transformer station, switch control and accident lighting

♦ Fire fighting, safety device and alarm monitoring

♦Aviation, spaceflight and power storage

♦Automatic office system

♦ Radio communication

♦ Emrgency lighting and car and ship starting system

♦Portable electric appliances and mining system

♦Traffic and navigation signal lamp



 Warnings:

1)- Matrix series accumulator have acid in the case and are fully charged before
leaving factory. Do not attempt to dismantle the accumulator, if accidental skin/eye
contact is made with electrolyte, seek medical advice immediately.
2)- Do not use a new battery with an old one.
3)- Do not use the battery in sealed container.
4)- Each battery should have detailed record including the ex-factory date,
installing date and using record.
5)- Check the connection of wire in a fixed interval (once a year). If there is
any looseness should tighten the wire.
6)- Wipe the surface of the battery with soft cloth in a fixed interval (once
three months) and always keep the accumulator clean.
7)- Avoid using any kind of organic solvents for cleaning the surface of the
accumulator.
